12-24V PoE adapter

SKU: POE-DC-12-24-AT

Electrical specifications

Input voltage 12-24 VDC

Output voltage +/-48 VDC +/- 5%

Output power   30 W

Output PoE type 802.3af/at on 1,2,4,5(+) and 3,6,7,8(-) pins

Data rate   1000 Mbps

Protection Short circuit, overvoltage, overcurrent

Physical specifications

Input jack Barrier terminal block

Output jack RJ-45

Data jack RJ-45

Dimensions 123 x 60 x 39 mm

Weight 180 g

Operating temperature -10 to +50 C

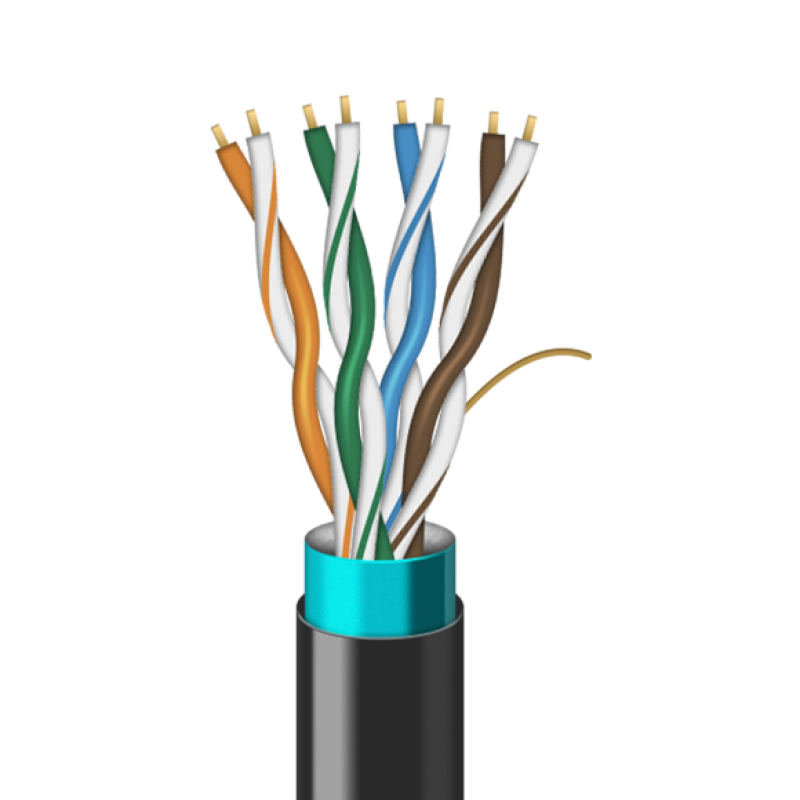

UTP/FTP cable length     100 m total (from switch to the device)
